Door Control Unit
Descriptions:
The Be-Tech Door Control Unit is the perfect solution to provide access control on common doors, such as parking barriers, health centers, gym room, conference room, staff entrances, guest night entrances and more, our Door Control Unit is fully compatible with Be-Tech electronic locking systems and provides better guest experience for your hotels.
| DCU Model | MJM | 2700M | |
|---|---|---|---|
| Supply Voltage | 18VDC | 12VDC | |
| Supply Current | 6A | 2A | |
| Load current, output 1 | Max. 3A @ 12VDC | Max. 3A @ 12VDC | Resistive load |
| Load current, output 2 | Max. 3A @ 12VDC | Resistive load |
PRODUCT DETAIL
Features

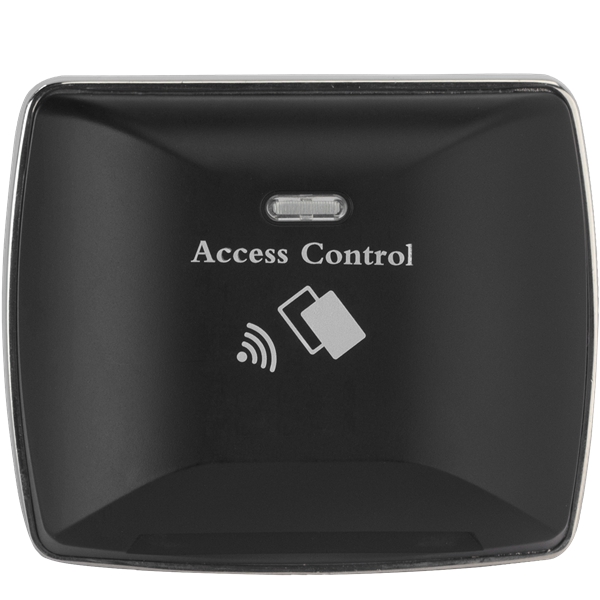

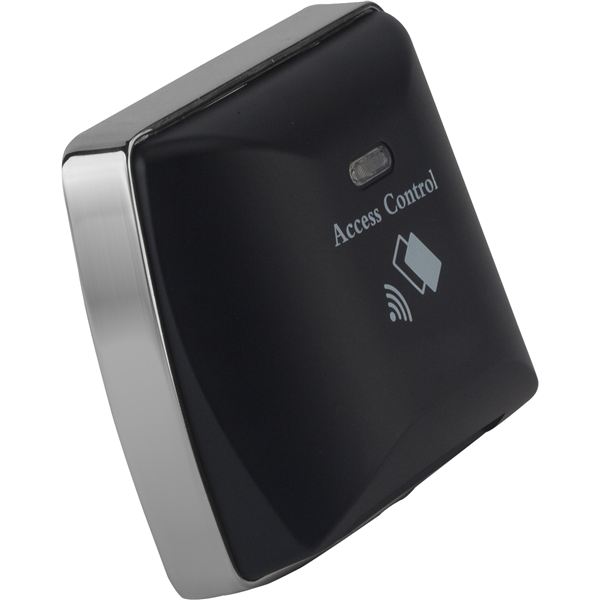

- Modern reader design in matte black color(for MJM model)
- Compatible with twins-reader mounting on passage door both side (optional to use)..
- Snap-on mounting design easy to fix for surface mounted installation.
- Inward wireless ‘Door Exit’ switch is available to simple “out and go” for hotel guests.
- Compatible with BIS Hotel and BIS Locker systems.
- Can work with Electronic dropbolt, Electronic Magnet lock, Electronic strike.
Each complete unit, supplied individually packed, consists of:
- RFID reader with front control case
- Relay board
- Dust proof cover
- 1.5m three-core cable
- 4m six-core cable
- Relay box in black steel (*)
- 5m three-core cable (*)
- 16m six-core cable (*)
(*) only for the elevators with more than 8 floors.
Additional relay boards must be ordered in addition if needed.
Technical Data:
Each complete unit, supplied individually packed, consists of:
Model MJM:
1)Door Control Unit with reader.
2)Control box.
3)External Power supply.
4)Inward wireless Door Exit switch.
Model 2700M:
1)Door Control Unit with reader.
2)External power supply.
3)Inward wireless Door Exit switch.

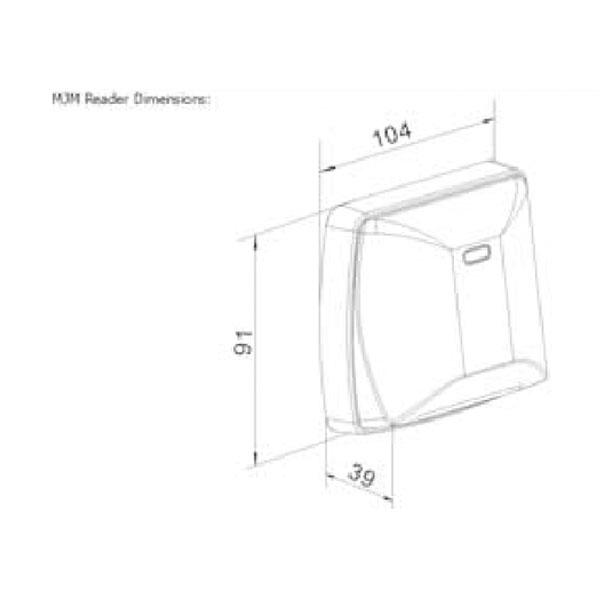

Dimension-MJM:
Reader:
Height: 91 mm / 3.58 inch
Width: 104 mm / 4.09 inch
Depth: 39 mm/ 1.54 inch
Relay box:
Height: 310 mm / 12.2 inch
Width: 160 mm / 6.3 inch
Depth: 72 mm / 2.83 inch

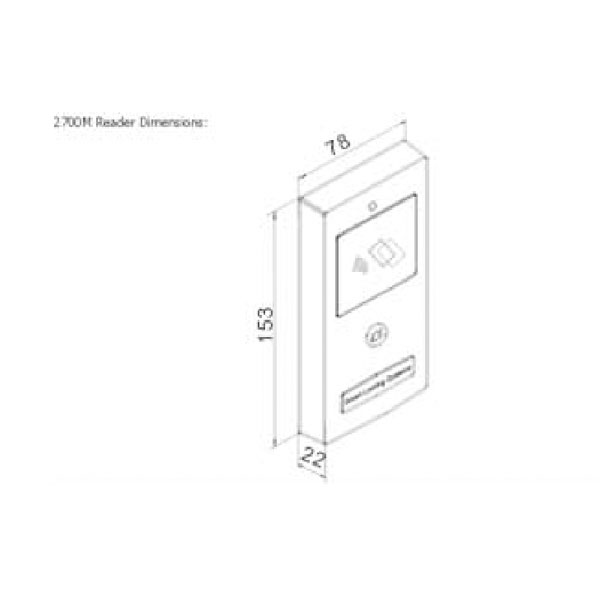

Dimension-2700M:
Reader:
Height: 153 mm / 6.02 inch
Width: 78 mm / 3.07 inch
Depth: 22 mm / 0.87 inch
